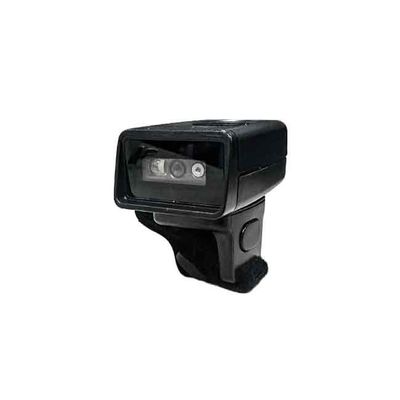

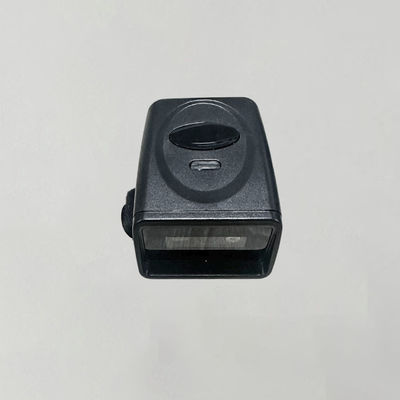

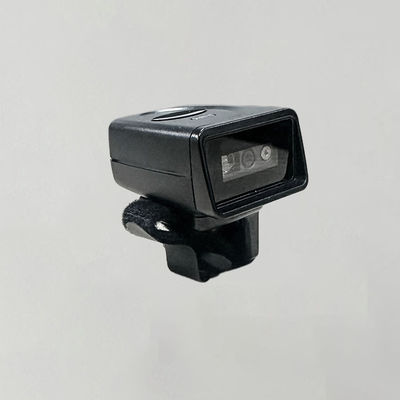

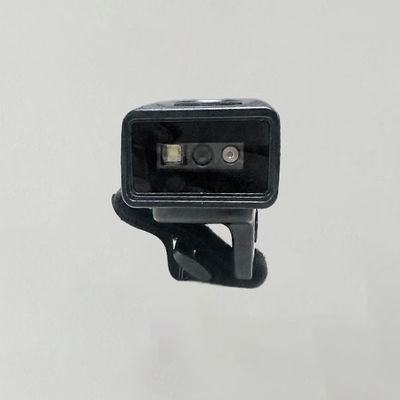

FR100 Finger ring type code scanning gun mini lightweight warehousing logistics wireless bluetooth scanner

Name: FR100 Finger ring type code scanning gun mini lightweight warehousing logistics wireless bluetooth scanner
Brand: Wuxi Shirui IoT Technology Co., Ltd
SKU: FR100
Price: 16.00 USD
Availability: InStock

Nazwa marki:	SR
Numer modelu:	FR100
MOQ:	10 PCS
Ceny:	13-20usd
Warunki płatności:	L/C, T/T
Zdolność do zaopatrzenia:	4000 szt./dzień

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Wymiary:

54,5 (l) × 49,5 (w) × 35 (h) mm

Waga:

Skaner: 42G; Pakowanie: 120G

Napięcie wejściowe/robocze:

DC 5v; DC 3,7 V.

Rolka/boisko/odchylenie:

270 °/± 60 °/± 60 °

Kąt pola:

Poziome: 42 °; Pionowy: 26,5 °

Kontrast wydruku:

25% minimalna różnica odblaskowa

Szybkość skanowania:

300 razy/sekundę (300 szt. (Prędkość układu))

Częstotliwość radiowa:

2.4G2 - 2.485 GHz, Kompatybilny z Bluetoothem 4.0

Szczegóły pakowania:

pudełko z tektury falistej

Opis produktu

Wireless 1D/2D Barcode Handheld Ring Scanner for Retail Use

Description:

FR100 Finger Ring Bluetooth Barcode Scanner is compact and lightweight, comfortable to wear, does not affect the hand operation, suitable for efficient operation. Equipped with a high-performance chip, it can quickly read 1D and 2D codes on paper or electronic screen. Built-in 500mAh battery, 1.5 hours fast charging, battery life up to 8 hours. Support Bluetooth 5.0, stable transmission, connection distance up to 50 metres, with 10,000 data offline storage capacity, compatible with Windows, iOS and Android systems, widely used in warehousing, logistics, retail and other scenes.

Specification:

Parameter	Details
Sensor Pixels	1080pixels(H)×800 pixel(V)
Lighting	White LED
Focusing	Laser
Roll/Pitch/Yaw	270°/±60°/±60°
Field Angle	Horizontal: 42°; Vertical: 26.5°
Print Contrast	25% Minimum reflective difference
Scanning Speed	300 times/second (300 Pcs (The chip speed))
Radio Frequency	2.4G² - 2.485GHZ, Compatible with Bluetooth 4.0
Wireless Distance	2.4G Empty (Depending on the environment): 50M (Empty)
Bluetooth Distance	Bluetooth 4.0: 10 - 15 meters (Open Range) (Bluetooth 4.0 15 - 20 M (Open Range))
1 - D Barcode Decode Capability	EAN13, EAN - 8, UPC - A, UPC - E, Code11, Interleaved 25, Code93, Code128, codabar, ISSN, ISBN, GS1 - Databar, GS1 - 128 Composite Code, Code 11, Industrial 25, MSI Plessey, etc, ITF - 6, ITF - 14, RSS, interleaved 2 of 5
2 - D Barcode Decode Capability	QR Code, Data Matrix, PDF417, Micro QR
Operating Temperature	-20℃ - +55℃
Storage Temperature	-40℃ - +70℃
Humidity	5% - 90% relative humidity, non - condensing
Shock Resistance	Designed to withstand 1.5m (6 drops)
Ambient Lighting	0 - 10000LUX
EAN - 13 Decode Range	50mm - 700mm (13mil)
Code39 Decode Range	40mm - 280mm (5mil 10byte)
QR Code Decode Range	30mm - 300mm (20mil 16byte)
Data Matrix Decode Range	45mm - 280mm (10mil 20byte)
PDF 417 Decode Range	50mm - 280mm (6.7mil 7byte)
1D Minimal Resolution	≥3mil
Dimensions	54.5(L)×49.5(W)×35(H)mm
Weight	Scanner: 42g; Packing: 120g
Input/Operating Voltage	DC 5V; DC 3.7V
Battery Capacity	380mAh
Continuous Work Time	Scanning for 5 hours (Once every 5 seconds)
Charging Time/Standby Time	1 Hour; 7 days
Operating/Standby Current	138mA; 11.8mA
Application Scenarios	Express logistics, Supermarket chain, Manufacture, Institutions, etc
Depth of Field Note	Adjustable per customer application; Performance affected by barcode quality & environment
